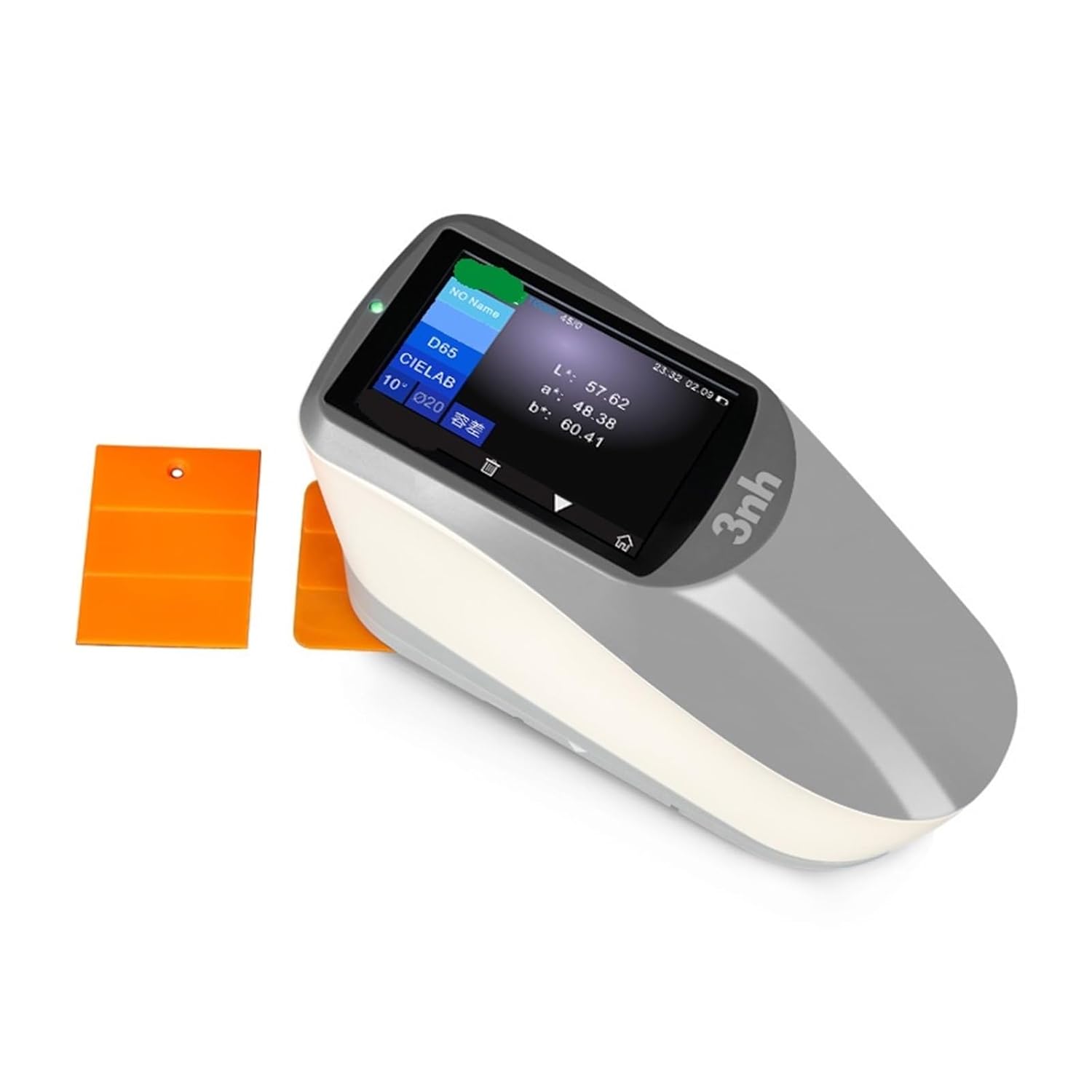

Spectrometer, Portable Spectrometer Non-Destructive Measurement Handheld Spectrocolorimeter for Quality Control

Battery Included : NoHign-concerned Chemical : NoneLighting method : 45/0 (45 ring uniform lighting 0° reception); Complies with standards CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7Characteristic : 20mm caliber colorimeter for the measurement of brightness factors and color coordinates of traffic signs, lines, mirror films, GB 2893, GB/T 18833 standard colors, and can manually customize the rectangular tolerance of polygons. It is used for accurate color analysis and transmission in laboratories; it can be used for fluorescence sample measurement. It can be used for accurate color measurement and quality control in food, plastic electronics, paint ink, textile and clothing printing and dyeing, printing, ceramics and other industries.Integrated sphere size : Diameter 48mmLighting source : Combination of LED light source and UV light sourceSpectral method : Concave grating spectrometrySensor : 256 pixel dual array CMOS image sensorMeasurement wavelength range : 400~700nmWavelength interval : 10nmHalf bandwidth : 10nmReflectivity measurement range : 0~200%Measuring diameter : diameter 20mmColor space : CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,Beta xy,DIN Lab99 Munsell(C/2)homochromatic index Mt, color fastness, color fastness, force (dye strength, color strength, coloring force), coverage, 555 tone classification, blackness (My,dM), color density CMYK, Tint (ASTM E313-00), color density, Saimener (some functions are realized through the upper machine)Observer's perspective : 2°/10°Observation light source : D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30),B,U35,NBF, ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-C2,LED-C3,LED-C5 (There are a total of 41 light sources, some of which are realized through the upper computer.)show : Spectral diagram/data, sample chromaticity value, color difference value/picture, qualified/failed results, color simulation, color biasMeasurement time : About 1.5sRepeatability : Spectromatic reflectivity: MAV, standard deviation within 0.1% Chroma value: MAV, E*ab within 0.04 (after instrument preheating and correction, measure the average value of the whiteboard 30 times at intervals of 5s)Inter-Machine Agreement : MAV/SCI, E*ab within 0.2 (average measurement value of BCRA series II 12 color plates)Measurement method : Single measurement, average measurement (2~99 times)size : Length X width X height =184X77X105mmweight : About600gBattery level : Lithium battery, 5000 times in 8 hoursLighting source life : More than 3 million measurements in 5 yearsDisplay : TFT true color 3.5inch, capacitive touch screeninterface : USB, Bluetooth5.0language : Simplified Chinese, English, Traditional Chinese, Russian, Italian, German, Portuguese, Spanish, FrenchOperating temperature range : 0~40, 0~85%RH (no condensation), altitude: less than 2000mStorage temperature range : -20~50, 0~85%RH (no condensation)Standard accessories : Power adapter, data cable, built-in lithium battery, instruction manual, quality control software (official website download), black and white correction box, protective coverOptional accessories : printers, powder test boxes, multi-function test components

• 1.Compact, lightweight, novel and fashionable exterior design based on ergonomics
• The structure is compact and lightweight. The position of the handheld part and the measurement button are carefully designed to meet different grip habits. The smooth and fine surface originates from the high-precision appearance processing art, which allows you to easily use in workshops, production lines, laboratories, warehouses and outdoors.
• 2.Dual array CMOS image sensor
• It has high sensitivity and a wide spectral response range, which ensures the measurement speed, accuracy, stability and consistency of the instrument.
• 3.One-click measurement is more convenient
• 3.5-inch TFT true color screen, capacitive touch screen, more convenient operation, operating system, smoother test experience, one-click setting of measurement parameters on the main interface, the downward arrow can turn the page to view, so that users can read and manage measurement data and various color indexes through both numbers and graphics.
• 4. 20mm large measuring caliber is especially suitable for measuring the color difference of food and agricultural products.
• It is suitable for measuring reflective color and chromatic aberration in various industries. It can meet the multi-faceted applications of traffic road signs, food, ingredients, materials, finished products, drugs and dermatology;
• If the object to be tested has a specific structure or uneven surface, such as materials, fabrics, wood, stones, bricks, etc., then YS4580 is your wise choice. Its 20mm large measuring caliber is suitable for measuring such samples, and there is no need to measure many times and then take the average.
• It is especially suitable for the color measurement of apples, tomatoes, peaches and other agricultural products. It can also add supporting multi-functional test components to measure the color of liquids, pastes, powders, etc., and measure the a/b, TPS and chromaticity values of ketchup, tomato juice, tomato paste or tomato sauce.
